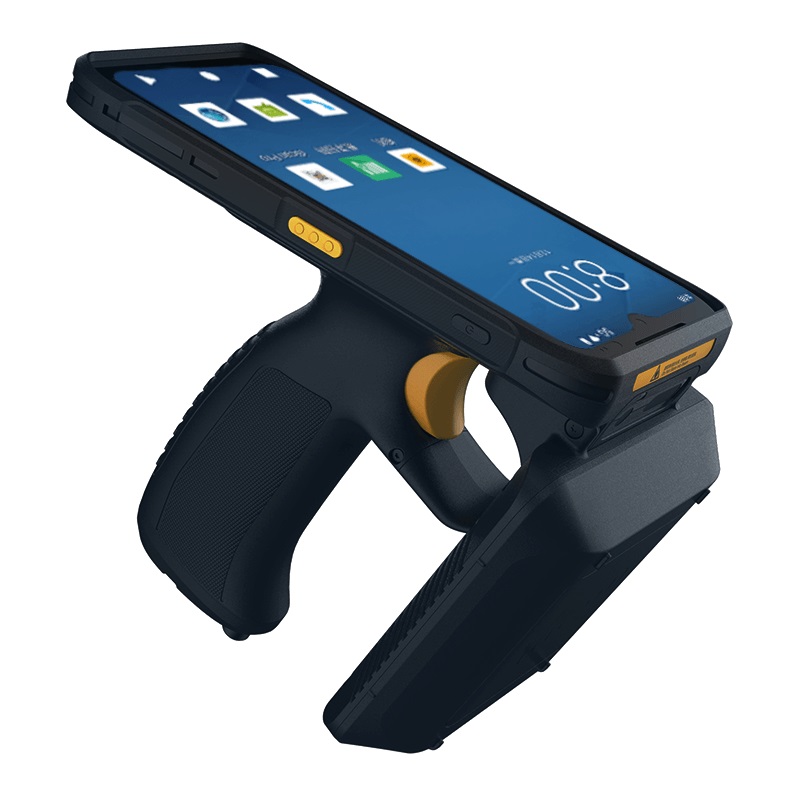

Đầu đọc RFID cầm tay iData T2 UHF

Đầu đọc RFID cầm tay iData T2 UHF với khả năng đọc RFID hiệu quả được thiết kế cho công nghiệp. Tốc độ đọc thẻ nhanh hơn 700 thẻ/giây, giúp công nhân tiết kiệm 40% chi phí thời gian của họ và hoàn thành công việc nhanh hơn khi xử lý công việc. Ứng dụng trong quản lý kho, logistic, bán lẻ,...

System Configuration

Processor	Octa-core 2.0GHz high-performance processor
Operating System	Android 12.0 (GMS)
Memory (ROM+RAM)	64GB + 4GB (standard), 128GB+6GB(optional)
SIM	Two out of three SIM card slots, support dual SIM and dual standby * Two out of three SIM card slots: two cards can be held at the same time, Nano SIM card + Nano SIM card /Nano SIM card +TF card
Expansion Slot	Micro SD card (up to 256 GB)
Display Screen	6.21-inch, resolution: 1520*720 pixels
Touch Screen	Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch/gesture operation
Camera	16 megapixels top camera, support auto-focus/PDAF; 5 megapixels front camera
Flashlight	800mA flashlight
Keypad	6 keypads in total: scan key 2, power key 1, volume key2, pistol trigger 1

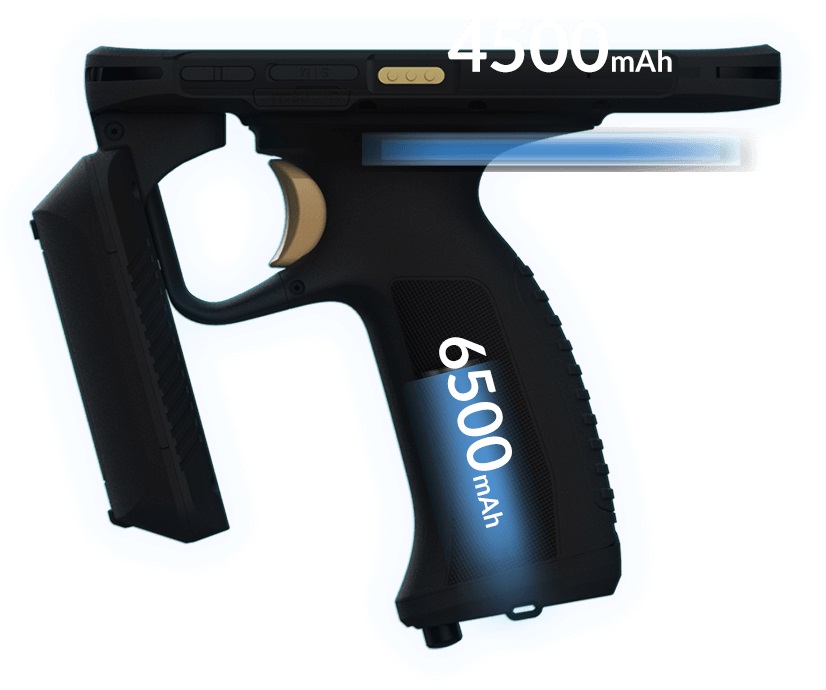

Battery	3.85V lithium battery, with 4500mAh, undetachable 3.7V lithium battery, with 6700mAh, detachable
Audio	Built-in microphone
Charging Method	Type-C and Pin-port charging, support 18W fast charging
Reminder	Vibration reminder/LED reminder/high power speaker/Audio reminder
Vibrating Motor	Built-in vibrating motor
Sensors	G-sensor/Proximity sensor/Light sensor/Geomagnetic sensor/ Gyroscope
Intercom Function (optional)	Support one-button PTT calls
Cooling fan (optional)	Built-in cooling fan

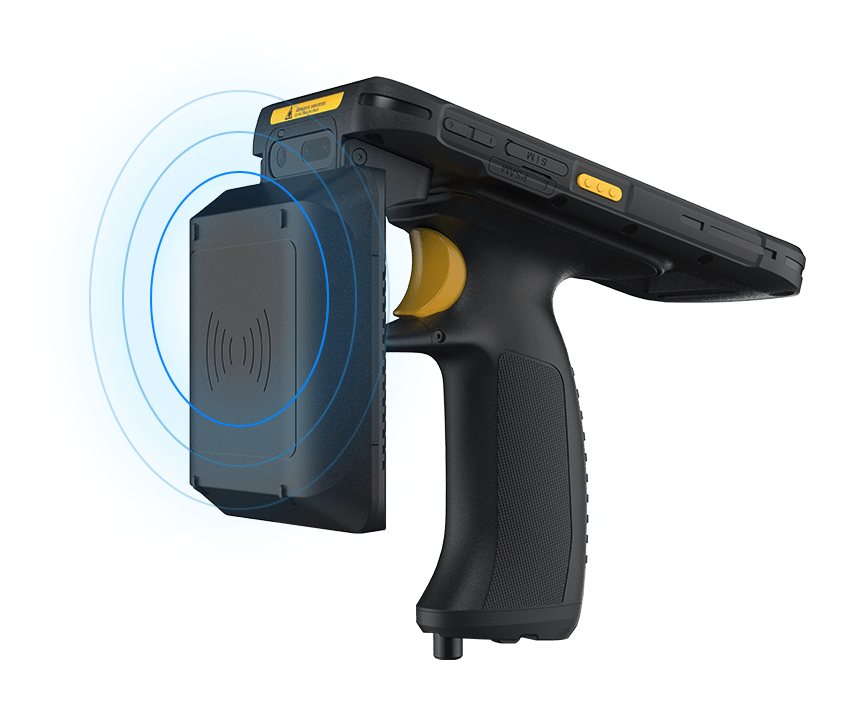

UHF RFID

Communication Protocol	ISO18000-6C/EPC Class1 Gen2
Frequency	920MHz~925MHz/902MHz~928MHz/865MHz~868MHz
Output Power	8~33dbm
Antenna	Circularly polarized antenna
Reading Distance	Up to 20m
Reading Rate	Up to 700 tags/s

Environmental Parameter

Working Temperature	-20℃ - 60℃ *Do not charge under low temperature conditions for the safety concerns
Storage Temperature	-40℃ - 70℃
Humidity	0 - 95% (no moisture condensation)
Drop Specification	Multiple drops to concrete floor from the height of 1.5m
Roller Drop Specification	1000 times of roller drops from a height of 0.5 meter
Ingress Protection	IP67
ESD Protection	±15KV (air discharge), ±8KV (contact discharge)

Communication Transmission

WWAN (Network Frequency)	China & Eurasian version: 2G：900/1800 3G：WCDMA：B1/B8 4G：FDD-LTE：B1/B3/B7/B8/B20， TDD-LTE：B34/B38/B40 American version: 2G: B2/B3/B5 3G: B1/B2/B4/B5，CDMA&EVDO：BC0/BC1 (U.S.) 4G: B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41
WWAN (Data Service)	GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCD MA/TD-SCDMA/TDD-LTE/FDD-LTE
WLAN Function	Wi-Fi 802.11a/b/g/n/ac/d/e/h/i/j/k/r/v/w（2.4G+5G dual band Wi-Fi), support fast roaming
Bluetooth	Bluetooth 5.0
GPS	GPS

Structure Parameter

Dimension (LWD)	168mm97mm145mm
Weight	680g (including the battery)

Communication Interface

USB Interface	Type-C (with headset function) *1
OTG Interface	Support
PSAM (optional)	Support PSAM*1

Development Support

Programming Language	Java
Development API	iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits), Android Standard Interface
Development Tool	Eclipse/Android Studio

Scanning Engine

Barcode Type	It can scan one-dimensional / two-dimensional barcodes
Scanning Accuracy	≧3.33mil
Scanning Angle	Pitch: ±60°； Skew：±45°； Tilt：360°
View Angle	Horizontal：44.3°，Vertical：28.4°，Diagonal：51°
Motion Error Tolerance	8m/s

Accessories

Standard Accessories	USB cable1, power adapter1
Optional Accessories	Single charging cradle, 4-slot charging cradle, 2-slot battery charging cradle, protective film
